3VA1125-5EE36-0AA0

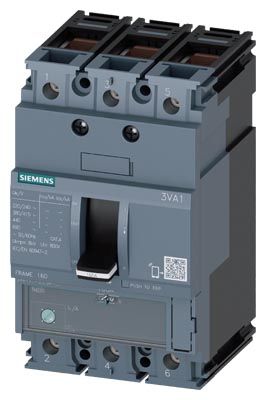

Moulded case circuit breaker

«
3VA1125-5EE36-0AA0
Product description:
3VA11, In 25 A, Icu 55 kA / 415 V, overcurrent release TM220 (ATFM), Ir 18 ÷ 25 A, Ii 12,8x In, 3-pole, clamp terminals
Order Code: 3VA1125-5EE36-0AA0
EAN: 4042948821374
Unit of measure pcs
Send a question to the product

Electrical parameters

Rated current25 A
Min. reduced rated current18 A
Max. reduced rated current25 A
Rated operating voltageAC 690, DC 500 V
Rated operating voltage AC690 V
Rated operating voltage DC500 V
Rated short-circuit ultimate breaking capacity / 415 V55 kA
Rated short-circuit service breaking capacity / 415 V55 kA
Rated frequency50/60 Hz
Setting of instantaneous short-circuit release12,8x In
Min. release current of independent instantaneous (short-circuit) release320 A
Max. release current of independent instantaneous (short-circuit) release320 A
Power losses / 1 pole2,83 W
Electrical endurance8000 cycles
Protection from front side of the deviceIP40

Physical parameters

Degree of protectionIP40
Number of poles3
Control element typelever

Mechanical parameters

Mechanical endurance20000 cycles

Dimensions

Width (netto)76,2 mm
Height (netto)130 mm
Depth (netto)70 mm
Weight (netto)0,984 kg
Basic package1 pcs
Collated package- pcs

Working conditions

Ambient temperature min.-25 °C
Ambient temperature max.70 °C

Customs data

Customs Tariff85362010
Country of originCZ
ALN
ECCNEAR99

Database data

PCK5375
